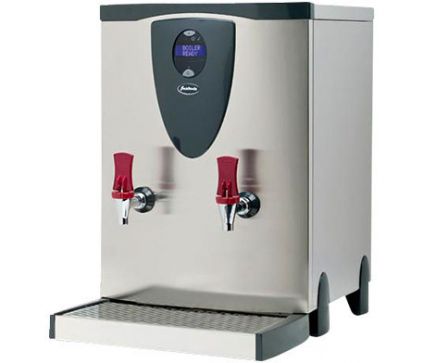

Instanta CTSV36T/9 SureFlow High Volume Water Boiler

Instanta CTSV36T/9 SureFlow High Volume Water Boiler


These  large and stylish boilers will cope with the most demanding situations where large volumes are needed in a short period. All feature twin taps for speedy delivery.

Features and Benefits

  • Integral seven day programmable timer
  • Energy saving ECO mode
  • Temperature programmable between 80°C - 98°C
  • Comprehensive diagnostics system
  • Integral stainless steel drip tray included
  • Heat-up time (mins)23
  • Recovery Rate (litres)1.4
  • Stand by Power (kW/h)0.17
  • Rapid Draw-Off (litres)36
  • Rapid Draw-Off (cups)216
  • Hourly Output (litres)85
  • Hourly Output (cups)500

Installation: Easy to install on a stable worktop.

Plumbing: Designed for direct connection to a potable cold water supply using the 1.5 metre (3/4” BSP) hose supplied. An isolating valve should be installed between the supply and the heater. Rear supply connection and choice of rear or front overflow.

Electrical: The CT6000-9 is 9kW and require a 400 volt, three phase supply.


  • Brushed stainless steel case.
  • Stainless steel heating chamber.
  • Low voltage switching.
  • Two safety cut-outs.
  • Tap clearance to drip tray 165mm
  • Rear connection clearance 45mm

Height: 608mm

Width: 440mm

Depth 555mm


2 Year Warranty
